Radium Engineering Fuel Hanger Plumbing Kit Mazda MX-5 (1989-2005) Stainless Filter - 20-1025-03
Radium Engineering Fuel Hanger Plumbing Kit Mazda MX-5 (1989-2005) Stainless Filter - 20-1025-03
Fitment Information
-
Fuel Pumps Compatible:
- AEM 50-1200
- Walbro GSS342
- Walbro F90000267
- Walbro F90000274
- Walbro F90000285
- Ti Automotive E5LM
-
Compatible with the following models:
- Mazda MX-5 (1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005)
- Mazda MX-5 (1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005)

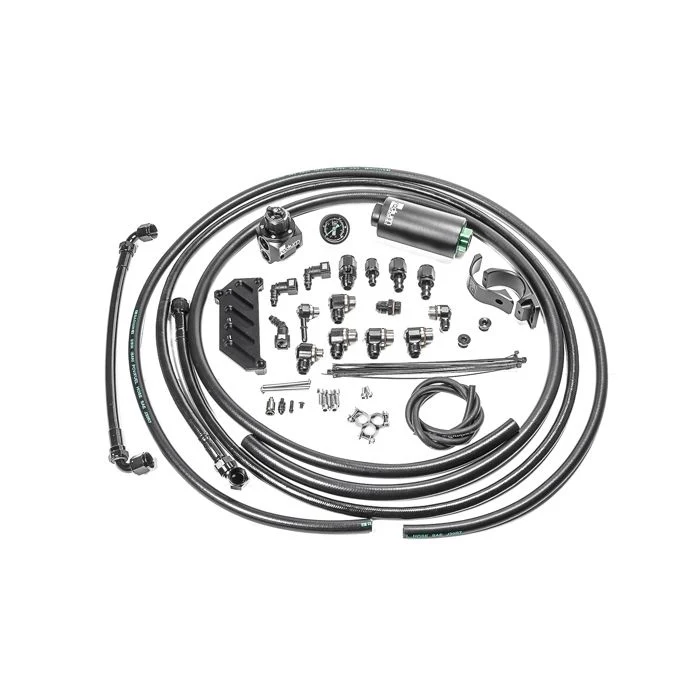

What Includes
- A fuel pressure gauge mounts directly to the feed line for easy adjustment.
Product Description
A large 8AN feed line runs around the backside of the fuel tank. This line mates to a new high flow fuel filter mounted in the OEM location using a billet mount. A 10 micron stainless steel (-03) or a 6 micron microglass (-05) element is used depending on the kit selected.
An 8AN PTFE fuel line runs from the fuel filter along that factory hard lines.
This 8AN PTFE line feeds the RA-series fuel pressure regulator (FPR) mounted under the RH strut tower. From the FPR, an 8AN PTFE fuel line feeds the front port of a dead head aftermarket fuel rail (not included). The Mazda 1.6L B6 Fuel Rail or Mazda 1.8L BP Fuel Rail are sold separately.
The OEM fuel feed line is repurposed as a high flow return line. The OEM fuel line connects directly to the FPR return fitting.
Original: $683.95
-70%$683.95
$205.19
