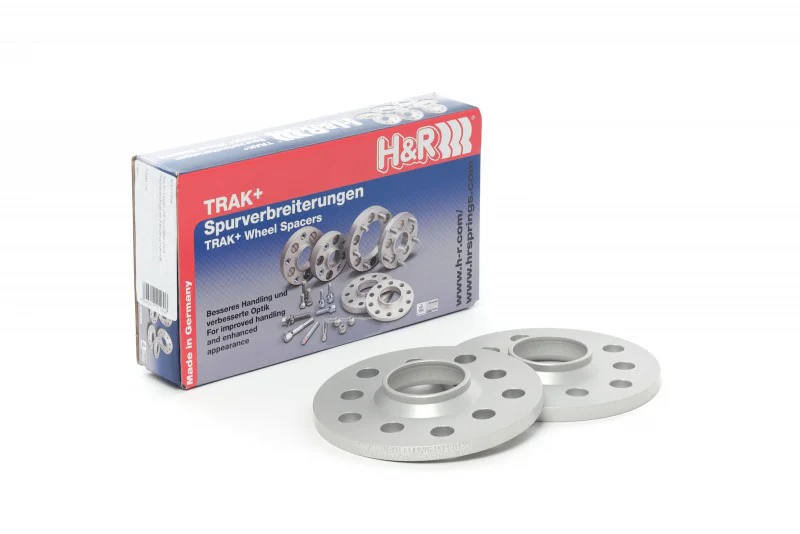

H&R Wheel Spacers for BMW XM G09 AWD (2023-2025) 10mm 12mm 15mm 18mm 20mm 25mm 30mm

Fitment Information

• BMW XM G09 AWD (2023, 2024, 2025)

Specs & Features

• Bolt Pattern: 5/120
• Center Bore: 66.5
• Bolt or Stud: Bolt
• Thread Type: 14x1.25
• Sold as a pair

• Available in multiple styles
• Series Option:
  • DR Series - 3mm to 23mm widths, requires longer wheel bolts (ordered separately)
  • DRA Series - 20mm to 45mm widths, bolts directly to hub with included special wheel bolts, provides new threaded holes for existing wheel bolts

Product Description

Wider is Better! H&R TRAK+ Wheel Spacers move your wheels and tires outwards so they are more flush with the fender‚ instantly giving your vehicle the perfect stance. High end sports car manufacturers use every millimeter of fender space available in their design for the best looks and highest performance and so should you. With TRAK+ you can fill the gap in your fenders and GO WIDE!

TRAK+ Wheel Spacers are manufactured from a special proprietary alloy specifically developed for H&R that is lighter and has a higher tensile strength than 6061-T6 billet aluminum. H&R TRAK+ Wheel Spacers are hubcentric and feature a full contact hub‚ just like the factory hub‚ for even load force distribution and lateral support.

Important

10mm / 10mm Black / 12mm / 12mm Black / 15mm / 15mm Black / 18mm / 18mm Black / 20mm / 20mm Black DR Wheel Spacer

• All DR-Systems require longer wheel bolts. These must be ordered separately. H&R Wheel Spacer Bolts are listed here. When ordering wheel bolts, please follow these guidelines:

  a) If possible, name the brand of wheel.

  b) New bolts must be longer than the original bolts by the width of the wheel spacer used.

  c) The bolt head must be identical to the existing bolt:
  Taper 60° End digit 01
  Round head for M12/d24 mm, for M14/d28 mm End digit 02
  Round head for M12/d26 mm (e.g. OE VAG-wheels) End digit 03
  Flat head for Porsche original wheels M14 x 1.5 End digit 06

  d) Safety guidelines
  (Minimum number of turns for wheel bolts / nuts):
  M12 x 1.25 = 8.0 turns = approx. 10 mm of load bearing shaft length
  M12 x 1.50 = 6.5 turns = approx. 10 mm of load bearing shaft length
  M12 x 1.75 = 6.5 turns = approx. 12 mm of load bearing shaft length
  M14 x 1.25 = 9.0 turns = approx. 12mm of load bearing shaft length
  M14 x 1.50 = 7.5 turns = approx. 12 mm of load bearing shaft length
  1/2" UNF = 8.0 turns = approx. 11 mm of load bearing shaft length

  e) Please ensure that the wheel bolts do not damage any part of the brake system (ABS sensors, etc.). Turn the wheel by hand and check clearance on the inside of the hub. The wheel should rotate freely. (Maximum tolerance for some vehicles is only 2mm -- i.e. Rear Axle Mercedes).



10mm / 10mm Black / 12mm / 12mm Black DR Wheel Spacer

• Careful attention must be paid to the vehicle hub height and inner wheel bevel measurements. Failure to follow the measurement guidelines below can result in serious damage to wheel spacers, wheels, and mounting hardware.

10mm / 10mm Black / 12mm / 12mm Black / 15mm / 15mm Black / 18mm / 18mm Black / 20mm / 20mm Black DR Wheel Spacer

• Not for use with steel wheels

22.5mm / 22.5mm Black / 25mm / 25mm Black / 30mm / 30mm Black DRA Wheel Spacer

• Not for use with steel wheels

22.5mm / 22.5mm Black / 25mm / 25mm Black / 30mm / 30mm Black DRA Wheel Spacer

• The OE wheel bolt must have a fully threaded shank and must be shorter than the thickness of the spacer to avoid interference with the hub face
